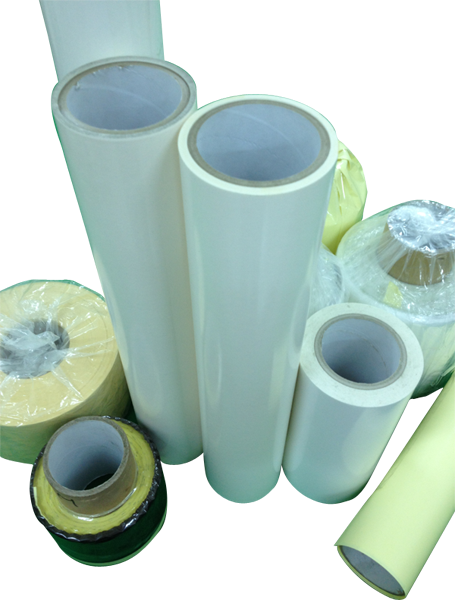

Thermal tape
Feature：
- Thermal tape with low thermal impedance, high conductivity, and excellent insulation.
- It can be stuck directly on heat sinks and easy to operate with no need of using any fasteners or screws.
- Should be used with the thermal conductive materials and elements, achieve the balance between the cost and performance.
- You can list with demand side or double side coating according to the design, and set the product thickness.
Function：
- No need to using any fasteners or screws, transmit overheat the temperature to the better thermal performance material or institutions.
- Enhanced thermal conductivity between the heating element and pad, and it could be effective to discharge heat from the material.
- Good material for conductive and isolation.
|
 |
Applications：
- Fixed the cooler on the MB North bridge、West bridge and the graphic card.
- Applies to all types of networking and communications products. Ex: base station、router 、and hub modem system.
- LED backlight and lighting.
- All kinds of consumer products. Ex: TV、Set Top Box.
- All kinds of electronics, electrical products heating application.
|
IT-SERIES & TAPES
- Best applied materials for LED lighting and LED TV.
- The various types of heat sink can effective adhesive and caulk.
- Improve power and reliability and support competitive price, cutting and molding material will improve the operational.
| SERIES |
Thermally Conductive Attachment Tapes |
| MODEL |
IT-910 |
IT-90 |
IT-95 |
IT-98 |
TEST METHOD |
| Thickness |
0.1 mm |
0.15 mm |
0.25 mm |
0.8 mm |
ASTM D374 |
| Operating Temperature |
(-)30℃~150℃↑ |
---- |
| Reinforcement Carrier |
Fiberglass |
Visual |
| Thermal Conductivity |
1.2 W/mk |
ASTM D5470 |
| Adhesion (To Steel) |
1.6 Kg/in |
1.85 Kg/in |
2.0 Kg/in |
＞2.5 Kg/in |
ASTM D1000 |
| Voltage Breakdown |
4KV |
5KV |
>5KV |
>10KV |
ASTM D149 |
| RoHS Compliant |
Yes |
Yes |
Yes |
Yes |
SGS |
- It’s replace the thermal tape with no base which produce in the US.
- High conductivity and steady, it’s easier to operate.
| SERIES |
Thermally Conductive Attachment Tapes |
| MODEL |
IT-713 |
IT-725 |
IT-735 |
IT-740 |
TEST
METHOD |
| Thickness |
0.13 mm |
0.25 mm |
0.35 mm |
0.4mm |
ASTM D374 |
| Thermal Conductivity |
1.2 W/mk |
1.2W/mk |
1.2 W/mk |
1.2W/mk |
ASTM D5470 |
| Operating Temperature |
(-)30℃~150℃↑ |
---- |
| Reinforcement Carrier |
NIL |
NIL |
NIL |
NIL |
Visual |
| Adhesion (To Steel) |
1.8 Kg/in |
2.0 Kg/in |
>2.0 Kg/in |
＞2.0 Kg/in |
ASTM D1000 |
| Voltage Breakdown |
3KV |
4KV |
5KV |
>5KV |
ASTM D149 |
| RoHS Compliant |
Yes |
Yes |
Yes |
Yes |
SGS |
- Application of all kinds of metal substrates, very straight and convenient.
- Higher thermal performance, even better than the metal applications in general.
- It’s the best choice of high thermal conductivity of the thin device.
| SERIES |
Thermally Conductive Attachment Tapes |
| MODEL |
IT-90A |
IT-95A |
IT-95AH |
IT-95CH |
TEST
METHOD |
| Thickness |
0.15 mm |
0.25 mm |
0.25 mm |
0.25mm |
ASTM D374 |
| Thermal Conductivity |
1.5 W/mk |
1.5W/mk |
2.6 W/mk |
3.0 W/mk |
ASTM D5470 |
| Operating Temperature |
(-)30℃~150℃↑ |
---- |
| Reinforcement Carrier |
Aluminum |
Aluminum |
Aluminum |
Copper |
Visual |
| Adhesion (To Steel) |
1.85 Kg/in |
2.0 Kg/in |
2.0 Kg/in |
2.0 Kg/in |
ASTM D1000 |
| Voltage Breakdown |
1.5KV |
2KV |
3KV |
3KV |
ASTM D149 |
| RoHS Compliant |
Yes |
Yes |
Yes |
Yes |
SGS |
|
